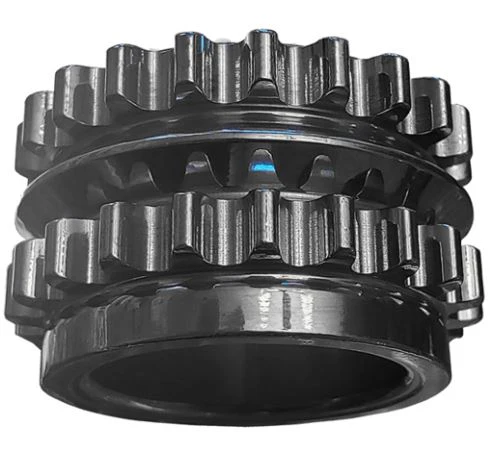

Boundary Coyote Crankshaft Timing Sprocket

Billet Crank Sprockets from Boundary follows the same heritage as our oil pump gears, manufactured 100% in-house with US-sourced materials. These sprockets start with a chromoly steel that is ten times stronger than the OEM powdered metal, hot quenched with a low temper for the highest strength and resistance to wear.

  • All sprockets heat treated to maximum hardness while maintaining toughness
  • Precision CNC machined and broached for snug accurate fit
  • Dimensions checked after machining and after heat treatment for guaranteed fit.
  • 80% more cross-section versus OEM at the keyway
  • Weighs 30% more than OEM at 170 grams vs 130 grams giving it the highest-strength sprocket on the market.
  • High finish reduces friction and chain vibration
  • New tooth geometry strengthens teeth and keyway

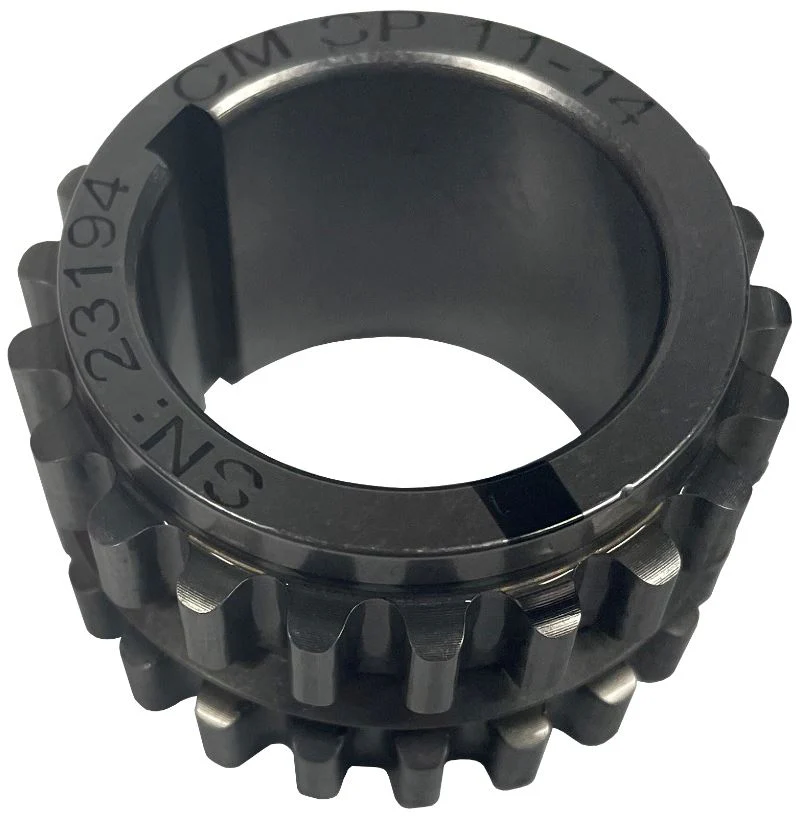

Part Number: CM-SP-11 FITS:

  • ALL FORD COYOTE 2011-2014

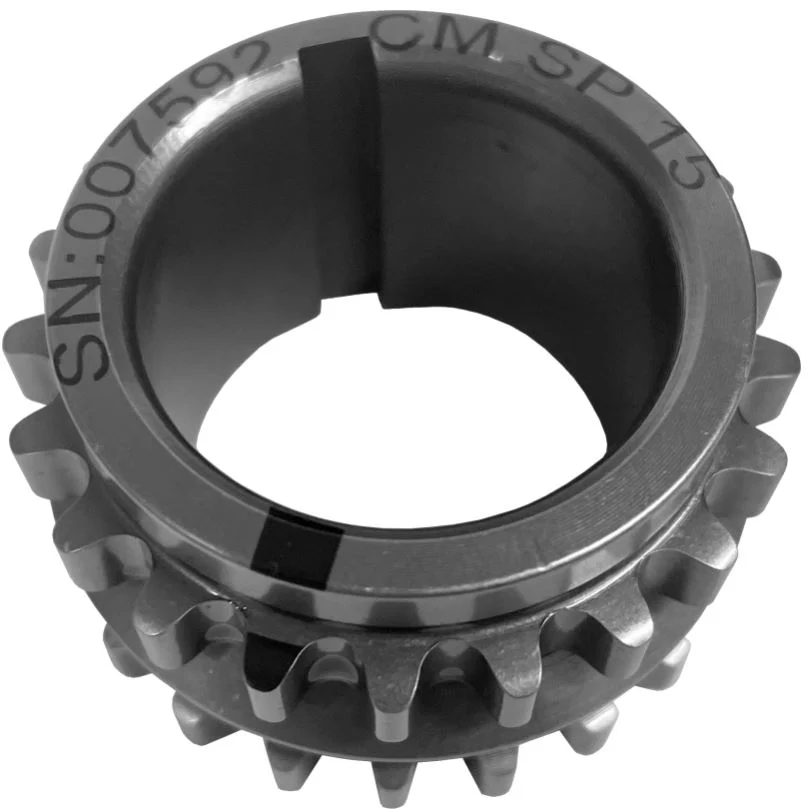

Part Number: CM-SP-15 FITS:

  • ALL FORD COYOTE 2015-UP

LARGE RADIUS (LR) FITS: Windberg, Callies, and other crankshafts with large nose radius.

Billet Crank Sprockets from Boundary follows the same heritage as our oil pump gears, manufactured 100% in-house with US-sourced materials. These sprockets start with a chromoly steel that is ten times stronger than the OEM powdered metal, hot quenched with a low temper for the highest strength and resistance to wear.

  • All sprockets heat treated to maximum hardness while maintaining toughness
  • Precision CNC machined and broached for snug accurate fit
  • Dimensions checked after machining and after heat treatment for guaranteed fit.
  • 80% more cross-section versus OEM at the keyway
  • Weighs 30% more than OEM at 170 grams vs 130 grams giving it the highest-strength sprocket on the market.
  • High finish reduces friction and chain vibration
  • New tooth geometry strengthens teeth and keyway

Part Number: CM-SP-11 FITS:

  • ALL FORD COYOTE 2011-2014

Part Number: CM-SP-15 FITS:

  • ALL FORD COYOTE 2015-UP

LARGE RADIUS (LR) FITS: Windberg, Callies, and other crankshafts with large nose radius.

Select Model Year
Select High Radius Relief for Billet Crankshaft- (only use with billet crankshaft)
Select With Grip Surface
From $41.65

Original: $119.00

-65%
Boundary Coyote Crankshaft Timing Sprocket—

$119.00

$41.65

Description

Billet Crank Sprockets from Boundary follows the same heritage as our oil pump gears, manufactured 100% in-house with US-sourced materials. These sprockets start with a chromoly steel that is ten times stronger than the OEM powdered metal, hot quenched with a low temper for the highest strength and resistance to wear.

  • All sprockets heat treated to maximum hardness while maintaining toughness
  • Precision CNC machined and broached for snug accurate fit
  • Dimensions checked after machining and after heat treatment for guaranteed fit.
  • 80% more cross-section versus OEM at the keyway
  • Weighs 30% more than OEM at 170 grams vs 130 grams giving it the highest-strength sprocket on the market.
  • High finish reduces friction and chain vibration
  • New tooth geometry strengthens teeth and keyway

Part Number: CM-SP-11 FITS:

  • ALL FORD COYOTE 2011-2014

Part Number: CM-SP-15 FITS:

  • ALL FORD COYOTE 2015-UP

LARGE RADIUS (LR) FITS: Windberg, Callies, and other crankshafts with large nose radius.
